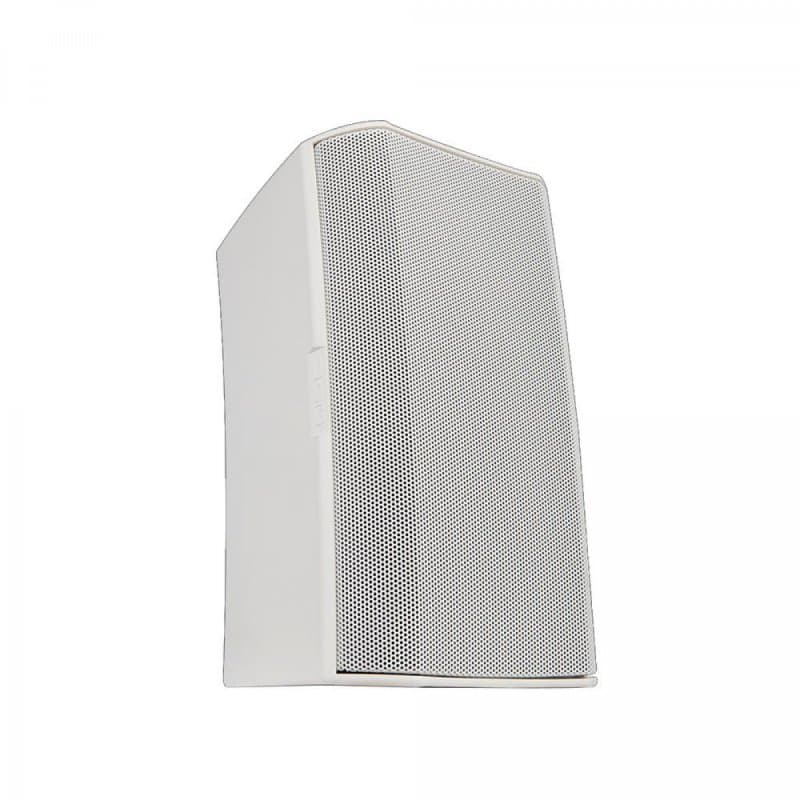

AcousticDesign Series 6" Surface Mount Speaker (White)

AcousticDesign™ series offers integrators a premium quality installed sound solution where performance, coverage, and aesthetics are paramount. Combined with unprecedented ease-of-installation and high weather resistance, the AcousticDesign™ series provides integrators a versatile and confident install solution over a wide variety of foreground and background sound reinforcement applications.<br/><br/>Consistent and even axisymmetric coverage is achieved through DMT™ (Directivity Matched Transition), a QSC innovation which matches the directivity patterns of the woofer and the high-frequency waveguide at the crossover point. The result is a coherent transition between transducers and improved off-axis response.<br/><br/>AcousticDesign™ models with (T) suffix feature low-loss, low-saturation transformers with selectable taps, including an 8&ohm; bypass. To enhance weather resistance, the rotary selector is located on the back of the enclosure, protected by a weather grommet.<br/><br/>With rugged ABS enclosures, sealed input panel covers, and powder-coated aluminum grilles for weather resistance, the AcousticDesign™ surface mounted series exceed IEC60529 IP-54 ratings for dust and splash resistance.<br/><br/>Installers will appreciate the award-winning X-Mount™ system included with each full-range AcousticDesign™ model. This ingenious mounting solution achieves unprecedented ease-of-installation in horizontal, vertical, wall, or ceiling deployments. Knurled surfaces at the pivot planes ensure the load will not drift or sag over time. Articulation marks allow pre-configuration of the X-Mount™ while on the ground with no special tools required. Once secure, the loudspeaker installs in seconds, allowing the installer to work safer, smarter, and faster with repeatable results.<br/><br/>To further enhance performance and speed of install with optimum result, advanced voicing filter sets using QSC Intrinsic Correction™ techniques are obtainable using Q-Sys networked audio processing platforms, including CXD amplifiers for a complete QSC systems solution.<br/><br/>The AcousticDesign™ series feature a stylish appearance free of obtrusive logo adornments for aesthetically sensitive installations. Complimenting adjacent product families, AcousticDesign™ surface loudspeakers are available in QSC standard black (RAL 9011) or white (RAL 9010) and may be painted to match any decor.<br/><br/>To assist in successful systems integration, EASE, CF2, CAD, and BIM files are available for download.<br/><br/>,<br/>Speaker: 6" Two-Way<br>Rated power continuous / peak / rms voltage: 50 W / 200 W / 20 V<br>Coverage Angle: 120° Axisymmetric<br>Impedance/Transformer: 8Ω / 70V / 100V<br>Maximum Peak SPL: 110 dB<br><br>
