RF Venue
RF Venue ILAMP
SKU: 630102 · Model: ILAMP-ACT
$301.67
In Stock (9 available)
1
Free shipping on orders over $150
Authorized dealer — genuine products
- •10 dB in-line RF amplifier/antenna booster, 10 dB
- •Gain, operating voltage 12-18V, stand or wallmount
Weight: 0.4 lbsDims: 5″ × 3″ × 2″
Product Details

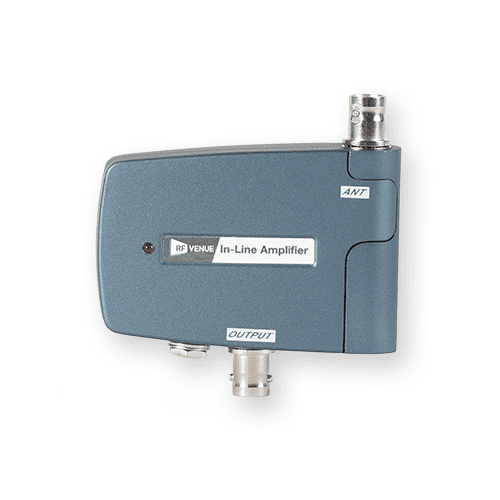

ILAMP-ACT in-line amplifier is designed to compensate for signal loss on long coax runs. One ILAMP-ACT can compensate 10dB of cable attenuation which is about 20 meters of RG-58 cable. ILAMP-ACT can be powered by power output from an antenna distributor/receiver or DC adapter (+12V/0.5A). The red light indicates the unit is getting power. Up to two ILAMP-ACTs can be cascaded.
A BNC female to BNC female adapter or coax jumper is required for cascade (not included).
Two ILAMP-ACTs are required for diversity applications.
A Wall mount adapter is included.
