Shure

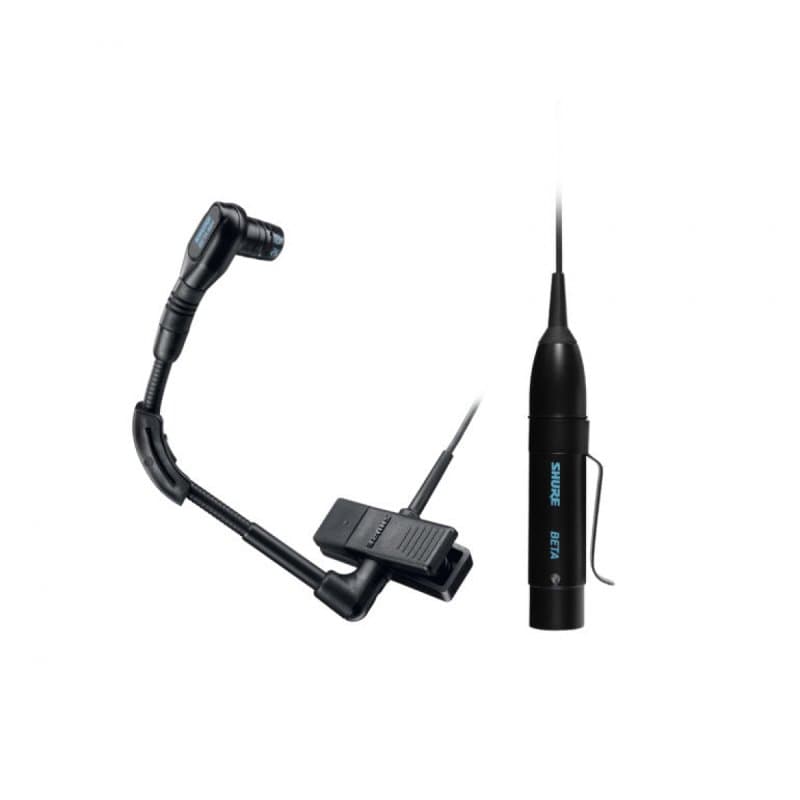

BETA Series Clamp-on Microphone for Woodwinds, Brass, and Percussion
SKU: 652255 · Model: BETA 98H/C
$306.67$326.00
In Stock (5 available)
1
Free shipping on orders over $150
Authorized dealer — genuine products
- •Compact, lightweight construction provides a low degree of visibility
- •Gooseneck, ratcheting swivel joint and gooseneck angle brace allow for optimum placement and fixed positioning
- •High maximum sound pressure level (SPL) enables handling of the extreme demands of brass, woodwind and percussion instruments
- •Transformerless preamplifier circuitry which improves linearity across the full frequency range
- •Pickup pattern provides high gain-before-feedback and excellent rejection of unwanted noise
- •Features a 3 m (10 ft.) high-flex cable with attached preamplifier (XLR connection)
- •Tailored frequency response for open, natural sound reproduction
- •Shure ruggedness and reliability
- •Interchangeable replacement cartridges: RPM108 : Cardioid RPM110 : Supercardioid
Weight: 1.05 lbsDims: 10.1″ × 5″ × 3.4″
Product Details
The Beta 98H/C�is a premium cardioid condenser instrument microphones that clamps onto the bell of wind instruments or onto the rim of percussion instruments. The integrated gooseneck and ratcheting swivel joint allows the mic to be easily positioned and secured, and an isolation shock-mount reduces the transmission of instrument 'key noise' and other mechanical noise. A gooseneck angle brace is included to provide better retention of the microphone placement during more active performances.<br/><br/>Type<br/>Condenser (electret bias)<br/><br/>Frequency Response<br/>20 to 20,000 Hz<br/><br/>Polar Pattern<br/>Unidirectional (cardioid)<br/><br/>Output Impedance<br/>Rated at 150.0 ohms (actual) Recommended minimum load impedance: 1 kilohm. May be used with loads as low as 150 ohms with reduced clipping level.<br/><br/>Output Level (0 dB = 1 volt per Pascal)<br/>Open Circuit Voltage: -56 dB (1.6 mV)<br/><br/>Output Clipping Level (at 1kHz, THD < 1%)<br/>2.5 kilohm load: 11 dBV (3.5 V)<br/>1.0 kilohm load: 3 dBV (1.4 V)<br/><br/>Maximum SPL<br/>2.5 kilohm load: 163 dB<br/>1.0 kilohm load: 155 dB<br/><br/>Dynamic Range (maximum SPL to A-weighted noise level)<br/>132 dB (2.5 kilohm load)<br/><br/>Signal-to-noise ratio<br/>63 dB at 94 dB SPL (IEC 651)<br/><br/>Polarity<br/>Positive pressure on microphone diaphragm produces positive voltage on pin 2 relative to pin 3 of preamplifier output connector.<br/><br/>Recommended Operating Voltage<br/>11 to 52 Vdc Phantom<br/><br/>Environmental Conditions<br/>Operating temperatures: -7 degrees C to 49 degrees C (20 degrees F to 120 degrees F)<br/>Storage temperatures: 29 degrees C to +74 degrees C (-20 degrees F to 165 degrees F)<br/>Relative Humidity: 0 to 95%<br/><br/>Net Weight<br/>Microphone w/cable and preamplifier: 156 g (5.5 oz.)<br/><br/>
