JBL

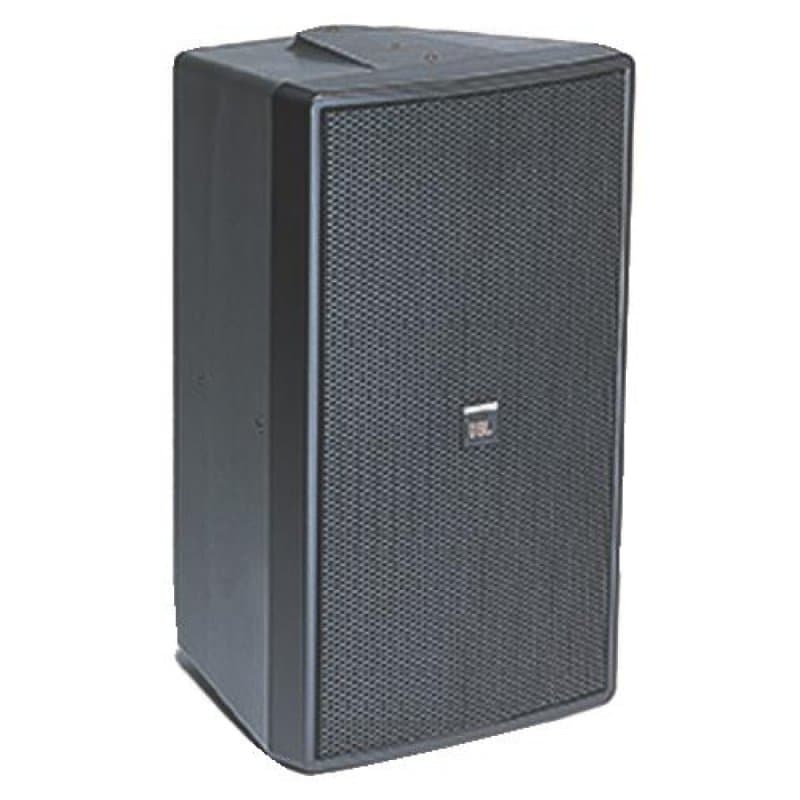

Premium Indoor / Outdoor Monitor Speaker
SKU: 652336 · Model: C29AV-1
$760.82
In Stock (7 available)
1
Free shipping on orders over $150
Authorized dealer — genuine products
- •Extended bandwidth, extremely smooth frequency response
- •110 W transformer for 70 V or 100 V lines, with 8 Ohm thru
- •110° x 85° HF coverage, rotatable horn
- •SonicGuard™ overload protection
- •200 mm (8 in) Kevlar cone woofer, 25 mm (1 in) titanium diaphragm compression driver
- •Includes InvisiBall™ mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket
- •Sealed input panel cover and screwdown input terminals
Weight: 33.15 lbsDims: 24″ × 15″ × 13″
Product Details
The Control® 29AV-1 provides improved voicing for extremely fl at, high fi delity performance, extended bandwidth and well-controlled defined coverage from a compact loudspeaker.<br/><br/>Frequency Range : 40 Hz –18 kHz<br/>(-10 dB)<br/><br/>Power Capacity : 300 W Continuous<br/>Program Power<br/>150 W Continuous<br/>Pink Noise<br/><br/>Transformer Taps : 70 V: 110 W, 55 W, 28 W & 14 W 100 V: 110 W, 55 W, & 28 W Thru Position: 8 nominal<br/><br/>Frequency Response : 45 Hz – 18 kHz<br/>( ± 3 dB)<br/><br/>Maximum SPL @ 1m : Short-Term: 120 dB; Long-Term: 114 dB<br/><br/>Nominal Sensitivity : 90 dB (2.83V / 1m)<br/><br/>Nominal Coverage Angle : 110° H x 85° V, rotatable<br/><br/>Directivity Factor (Q) : 7.2 dB, averaged 500 Hz to 16 kHz<br/><br/>Directivity Index (DI) : 8.6 dB, averaged 500 Hz to 16 kHz<br/><br/>Nominal Impedance : 8 ohms<br/><br/>Minimum Impedance : 6.3 ohms @ 230 Hz<br/><br/>Crossover Network : 3rd order High Pass, 2nd order Low Pass with impedance compensation, 2.5 kHz crossover frequency<br/><br/>Low Frequency : 200 (8 in) kevlar cone with pure butyl rubber surround, 50 mm (2 in) voicecoil on fiberglass former<br/><br/>High Frequency : 25 mm (1 in) compression driver, pure titanium diaphragm with patented JBL diamond surround<br/><br/>Enclosure Material : High impact polystyrene<br/><br/>Grille : Thermoset composite coated steel, WeatherMax multi-layer foam<br/><br/>Overload Protection : Full-range power limiting to protect network and transducers. Serviceable internal fuse to protect during exceptional overload conditions.<br/><br/>Environmental : IEC 529 IP-X5 rating. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. Passes Mil-Std-202F for salt spray.<br/><br/>Terminations : Screw-down terminal strip, zinc plated copper base, nickel plated metal screws/washers. Accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10 lug), plus bare wire (up to 12 AWG/2.5 mm2).<br/><br/>Safety Agency Rating : Transformer is listed per UL1876<br/><br/>Colors : Black or white (-WH)<br/><br/>Dimensions (H x W x D) : 520 x 306 x 277 mm (20.5 x 12.0 x 10.9 in.)<br/><br/>Net Weight (ea) : 12.2 kg (26.8 lb.)<br/><br/>Shipping Weight (ea) : 14.0 kg (30.8 lb.)<br/><br/>Included Accessories : 1 pc MTC-PC2 input panel cover, InvisiBall mounting base, 6 mm x 260 mm InvisiBall Hex wrench.<br/><br/>Optional Accessories : MTC-29CM to install speaker down from the ceiling MTC-29UB U-bracket
