Whirlwind

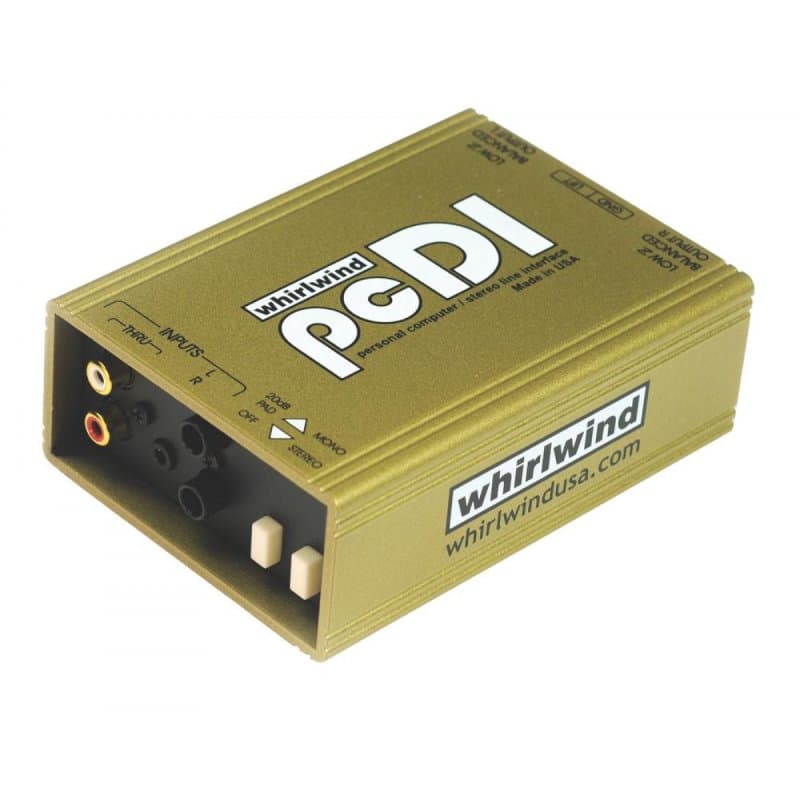

Personal Computer / Stereo Line Interface
SKU: 652607 · Model: PCDI
$289.33$295.00
In Stock (6 available)
1
Free shipping on orders over $150
Authorized dealer — genuine products
- •Ground Lift switch to help eliminate hum and buzz
- •Color coded RCA phono in / through jacks
- •3.5 mm input jack
- •1/4" TS input jacks
- •20dB pad switch for connection to "hot" input signals
- •Color coded XLR output jacks
- •Stereo/Mono switch for stereo operation or safely combine both inputs into a mono signal sent to both outputs
- •Uses Whirlwind's TRHL-M transformers with metal shield
Weight: 1.5 lbsDims: 7.5″ × 7″ × 2″
Product Details
The Whirlwind pcDI is perfect for interfacing the outputs of CD players, computer sound cards, iPODs® / MP3 players, tape decks, etc. with professional, balanced, low impedance equipment. <br/><br/>This unit contains two separate DIs - input your signals with one 3.5mm (1/8") mini TRS stereo jack, two sets of color coded RCA phono type input and through jacks or 1/4" TS input jacks. Output is via corresponding color coded XLRs.<br/><br/>Impedance Ratio (input to output, per channel): 133:1<br/>Frequency Response: 20Hz-20kHz ±1dB<br/>Level Change (input to output): -20dB (pad out), -40dB (pad in)
