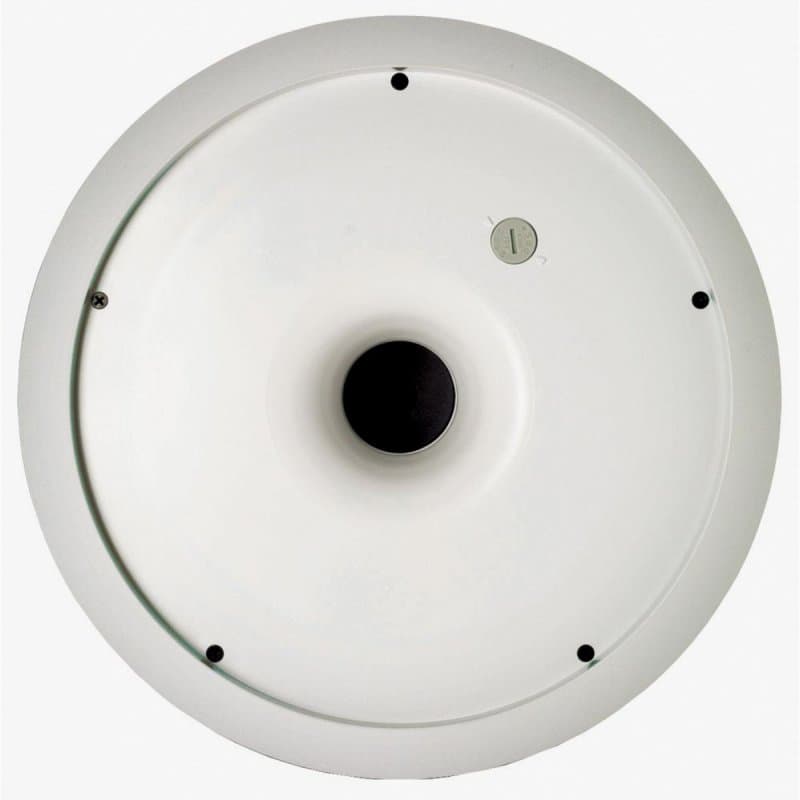

Control Contractor Series In-Ceiling Subwoofer with Transformer

The Control 19CST has a special subwoofer-band transformer for use on 70V or 100V line distribution systems. It is an ideal addition to any system, resulting in full-fidelity, high level sound. It uses advanced proprietary technologies to produce powerful bass from a low profile in-ceiling design. Includes C-shaped support backing plate, 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles), cutout template, paint shield, and removable locking wiring connector.<br/><br/>Unique Nested Chamber�design and Linear Dynamic Aperture�port design delivers high output from a compact enclosure.<br/><br/>JBL�s exclusive SonicGuard�overload protection allows higher operational levels and improved system reliability.<br/><br/>In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90, NFPA70A.<br/><br/>Component: Long excursion 200 mm (8 in) driver.<br/><br/>Packaged with grille, backcan and tile rails for fast installation and easy stocking.<br/><br/>Simple installation and wire connection method.<br/><br/>Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG<br/>
