Audio-Technica

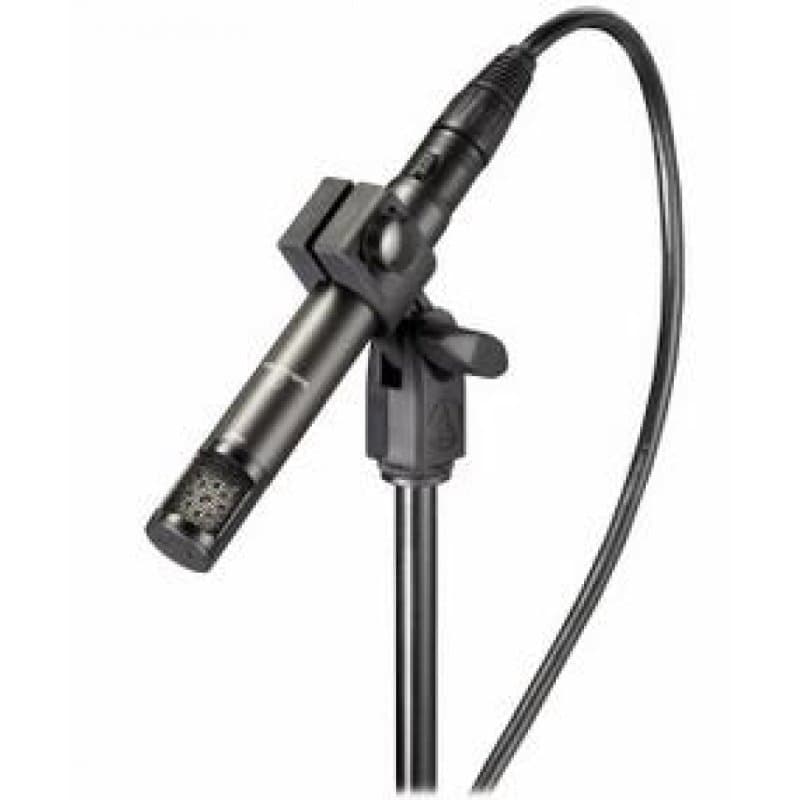

Side-Address Cardioid Condenser Instrument Microphone
SKU: 653419 · Model: ATM450
$391.17$470.00
In Stock (1 available)
1
Free shipping on orders over $150
Authorized dealer — genuine products
- •Durable performance for professional applications
- •Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source
- •Unique side-address stick design maximizes placement options with minimal obstructions
- •Uncompromising sound quality for overheads, percussion, acoustic guitar, strings and other acoustic instruments
- •Integral 80 Hz HPF switch and 10 dB pad<br>
- •Rugged, all-metal design and construction for years of trouble-free use
- •Includes isolation clamp for shock protection, secure mounting and easy positioning
Weight: 0.9 lbsDims: 9.5″ × 5.1″ × 2.8″
Product Details
One of the new stars of the Artist Series remake, the ATM450 cardioid condenser offers an innovative side-address stick design for endless placement options and minimal obstructions. The microphone is equipped with an integral 80 Hz hi-pass filter that provides easy switching from a flat frequency response to a low-end roll-off. The ATM450 also features a switchable 10 dB pad that lowers the microphone's sensitivity, providing higher SPL capability for flexible use with a wide range of performers and system configurations. The microphone’s extended flat frequency response makes it ideal for high SPLs as well as for live and amplified acoustic instruments. Includes a professional isolation clamp to provide secure mounting, versatile positioning and effective dampening of unwanted mechanical noise. <br/><br/>ELEMENT Fixed-charge back plate permanently polarized condenser<br/>POLAR PATTERN Cardioid<br/>FREQUENCY RESPONSE 40-20,000 Hz<br/>LOW FREQUENCY ROLL-OFF 80 Hz, 18 dB/octave<br/>OPEN CIRCUIT SENSITIVITY –41 dB (8.9 mV) re 1V at 1 Pa<br/>IMPEDANCE 200 ohms<br/>MAXIMUM INPUT SOUND LEVEL 152 dB SPL, 1 kHz at 1% T.H.D.<br/>DYNAMIC RANGE (typical) 127 dB, 1 kHz at Max SPL<br/>SIGNAL-TO-NOISE RATIO 69 dB, 1 kHz at 1 Pa<br/>PHANTOM POWER REQUIREMENTS 11-52V DC, 3.5 mA typical<br/>SWITCHES Flat, roll-off; 10 dB pad<br/>WEIGHT 98 g (3.5 oz)<br/>DIMENSIONS 126.9 mm (5.00") long,<br/>21.0 mm (0.83") diameter<br/>OUTPUT CONNECTOR Integral 3-pin XLRM-type<br/>ACCESSORIES FURNISHED AT8471 isolation clamp for 5/8"-27 threaded stands; 5/8"-27 to 3/8"-16 threaded adapter; windscreen; soft protective pouchELEMENT Fixed-charge back plate permanently polarized condenser<br/>
