JBL

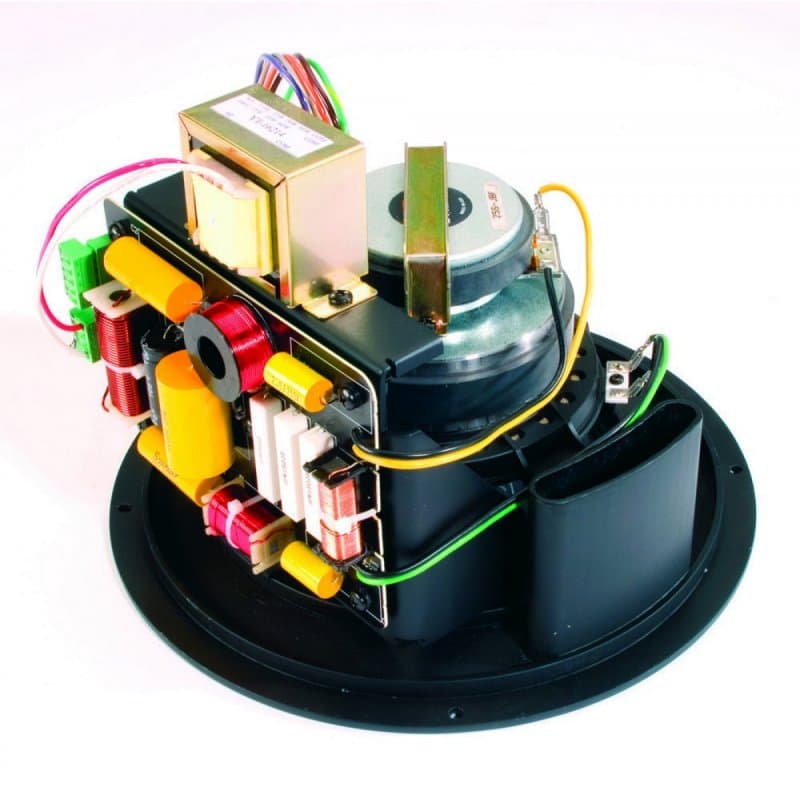

8" Coaxial Ceiling Loudspeaker with HF Compression Driver and Transformer
SKU: 654982 · Model: CONTROL 328CT
$576.32
In Stock (8 available)
1
Free shipping on orders over $150
Authorized dealer — genuine products
- •Extraordinary clarity for speech and vocals with extended frequency response for music
- •Consistent 120° broadband pattern control covers an extremely large area
- •Shaped mounting baffle provides the pattern control of a 300 mm (12 in) horn from a 200 mm (8 in) driver
- •200 mm (8 in) woofer with Kevlarreinforced cone and 50 mm (2 in) voice-coil
- •Advanced high-slope crossover network for constant coverage and smooth, natural midrange
- •Clean, contemporary grille and optional backbox available
- •25 mm (1" exit) compression driver
- •250 Watt power handling with very high sensitivity provides high SPL capability
Weight: 14.7 lbsDims: 12″ × 8.6″ × 6.3″
Product Details
Control 328CT has been engineered from the ground up to deliver exceptional next-generation performance in a coaxial point source design ceiling loudspeaker.<br/><br/>Frequency Range<br/>(-10 dB) : 45 Hz – 18 kHz<br/><br/>Long-Term System Power Rating : 250 W (1000 W peak), 2 hrs<br/>150 W (600 W peak), 100 hrs<br/><br/>Taps : 70V: 68W, 34W, 17W, 8.5W<br/>100V: 68W, 34W, 17W<br/><br/>Frequency Response<br/>(±3 dB) : 60Hz – 16 kHz<br/><br/>Coverage Pattern : 120° conical, broadband<br/><br/>Nominal Impedance (321C): : 8 ohms<br/><br/>Directivity Factor (Q): : 7.0 (Avg 1k - 16kHz)<br/><br/>Directivity Index (DI): : 8.5dB (Avg 1k - 16kHz)<br/><br/>Sensitivity (2.83V@ 1m): : 93 dB measured half-space<br/><br/>Maximum SPL6: : 118 dB cont ave (124 dB peak)<br/><br/>Crossover Network: : 1.9 kHz, 3rd order (18 dB/oct) high-pass plus conjugate<br/><br/>Dimensions (H x W x D) : 305 mm (12.0 in.) diameter round baffle x depth from back of baffle of 218 mm (8.6 in)
