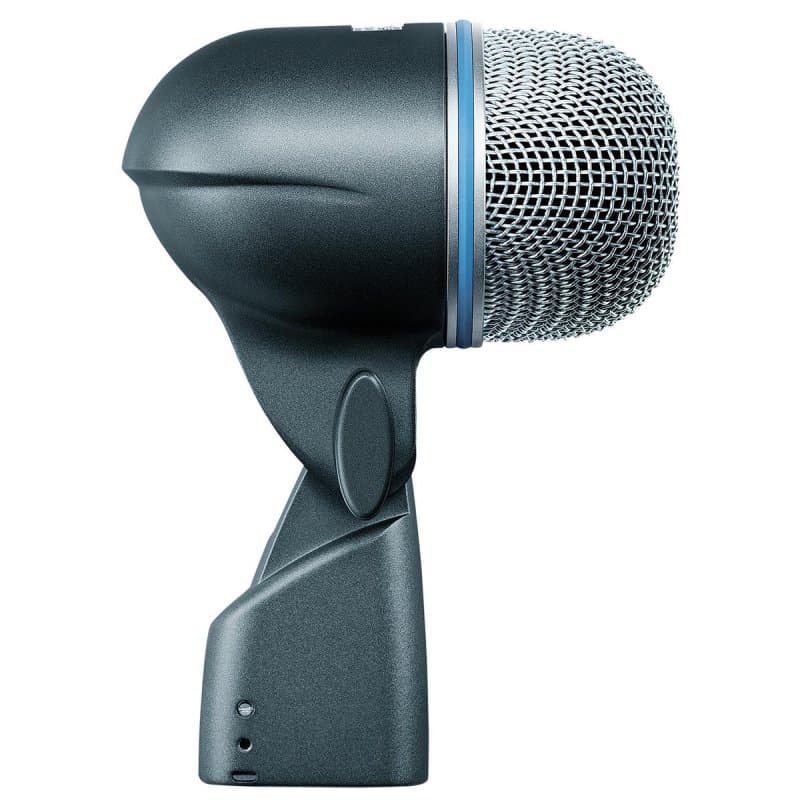

BETA Series Bass / Kick Drum Microphone

The Shure Beta 52�A is a high output dynamic microphone with a tailored frequency response designed specifically for kick drums and other bass instruments. It provides superb attack and "punch", and delivers studio quality sound even at extremely high sound pressure levels.<br/><br/>The Beta 52A features a modified supercardioid pattern throughout its frequency range to insure high gain-before-feedback and excellent rejection of unwanted sound. A built in dynamic locking stand adapter with an integral XLR connector simplifies installation, particularly if the microphone is to be placed inside a kick drum. The stand adapter keeps the microphone position fixed and resists slipping, even when subjected to sharp blows and strong vibrations. A hardened steel mesh grille protects the Beta 52A from the abuse and wear associated with touring.<br/><br/>Type<br/>Dynamic (moving coil)<br/><br/>Frequency Response<br/>20 to 10,000 Hz<br/><br/>Polar Pattern<br/>Supercardioid, rotationally symmetrical about microphone axis<br/><br/>Output Level (at 1,000 Hz)<br/>Open Circuit Voltage: -64 dBV/Pa* (0.6 mV)<br/>*1 Pa = 94 dB SPL<br/><br/>Impedance<br/>Rated impedance is 150 ohms (45 ohms actual) for connection to microphone inputs rated low Z<br/><br/>Phasing<br/>Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3<br/><br/>Maximum SPL<br/>174 dB at 1000 Hz (calculated)<br/><br/>Connector<br/>Three-pin professional audio connector (male XLR type)<br/><br/>Case<br/>Silver blue enamel-painted die cast metal with hardened, matte-finished steel grille<br/><br/>Adjustable, Locking Stand Adapter<br/>Integral, dynamic locking, adjustable through 180 degrees, with standard 5/8"-27 thread<br/><br/>Net Weight<br/>605 grams (21.6 oz)<br/><br/>
